제품소개

차세대 와이파이 기술을 리딩하는 기업

9

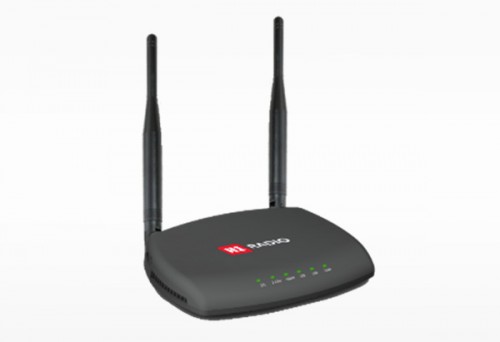

H432AH

IEEE 802.11b/g/n/ah
WAN : 2 x 10M/100BASE-T
HaLow : 920.6 ~ 923.5MHz, 1x1, Max 3.3Mbps(USN1)
WLAN : 2.4GHz 2x2
Power : DC5V/2A or 803.2af PoE
HaLow Gateway

8

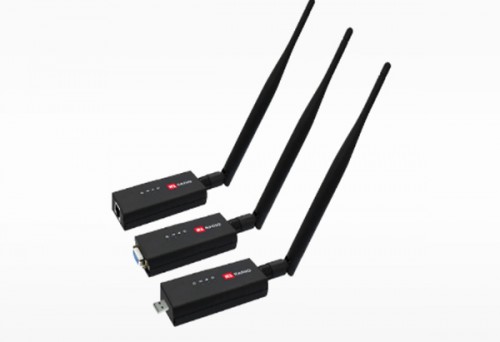

H312A-S/E/U

IEEE 802.11b/g/n/ah
HaLow : 920.6 ~ 923.5MHz, 1x1, Max 3.3Mbps(USN1)
H312A-S : HaLow to Serial(RS-232/422/485)
H312A-E : HaLow to Ethernet(10M/100BASE-T)
H312A-U : HaLow to USB (Host/Device mode)
Power : DC5V/1A

7

H1-M5520

IEEE 802.11a/b/g/n/ac(Wi-Fi 5)
Wi-Fi 5 + Bluetooth 5.0 Combo Module
Host Interface : WLAN SDIO, Bluetooth UART
WLAN : 2.4GHz/5GHz 2x2
Bluetooth 5.0
Size : 13(w) x 15(d) x 2(h) mm

6

H1-6530

IEEE 802.11a/b/g/n/ac/ax(Wi-Fi 6)
Wi-Fi 6 + Bluetooth 5.2 Combo Module
Host Interface : WLAN PCIe, Bluetooth UART
WLAN : 2.4GHz/5GHz 2x2
Bluetooth 5.2
Size : 25(w) x 29(d) x 3.1(h) mm

5

H1-M4330

IEEE 802.11a/b/g/n(Wi-Fi 4)
Wi-Fi 4
Host Interface : UART
WLAN : 2.4GHz 1x1
Size : 19(w) x 22.25(d) x 2.3(h) mm

4

H1-M4410

IEEE 802.11a/b/g/n(Wi-Fi 4)
Wi-Fi 4 + Bluetooth 5.0 Combo Module
Host Interface : UART
WLAN : 2.4GHz/5GHz 1x1
Bluetooth 5.0
Size : 16(w) x 26(d) x 2.5(h) mm

3

H1-4430

IEEE 802.11b/g/n
Wi-Fi 4 + Bluetooth 4.2 Combo Module
Host Interface : UART
WLAN : 2.4GHz 1x1
Bluetooth 5.3
Size : 25(w) x 45(d) x 3.6(h) mm
Size : 25(w) x 45(d) x 9.9(h) mm (Interface connector included)

2

H1-M6430

IEEE 802.11b/g/n/ac/ax(Wi-Fi 6)
Wi-Fi 6 + Bluetooth 5.2 Combo Module
Host Interface : UART
WLAN : 2.4GHz/5GHz 1x1
Bluetooth 5.2
Size : 34(w) x 45(d) x 3.6(h) mm
Size : 34(w) x 45(d) x 9.9(h) mm (Interface connector included)

1

H1-M6430C

IEEE 802.11b/g/n/ac/ax
Wi-Fi 6 + Bluetooth 5.2 Combo Module
Host Interface : UART
WLAN : 2.4GHz/5GHz 1x1
Bluetooth 5.2
Size : 34(w) x 45(d) x 3.6(h) mm
Size : 34(w) x 45(d) x 9.9(h) mm (Interface connector included)
